Data Table Component

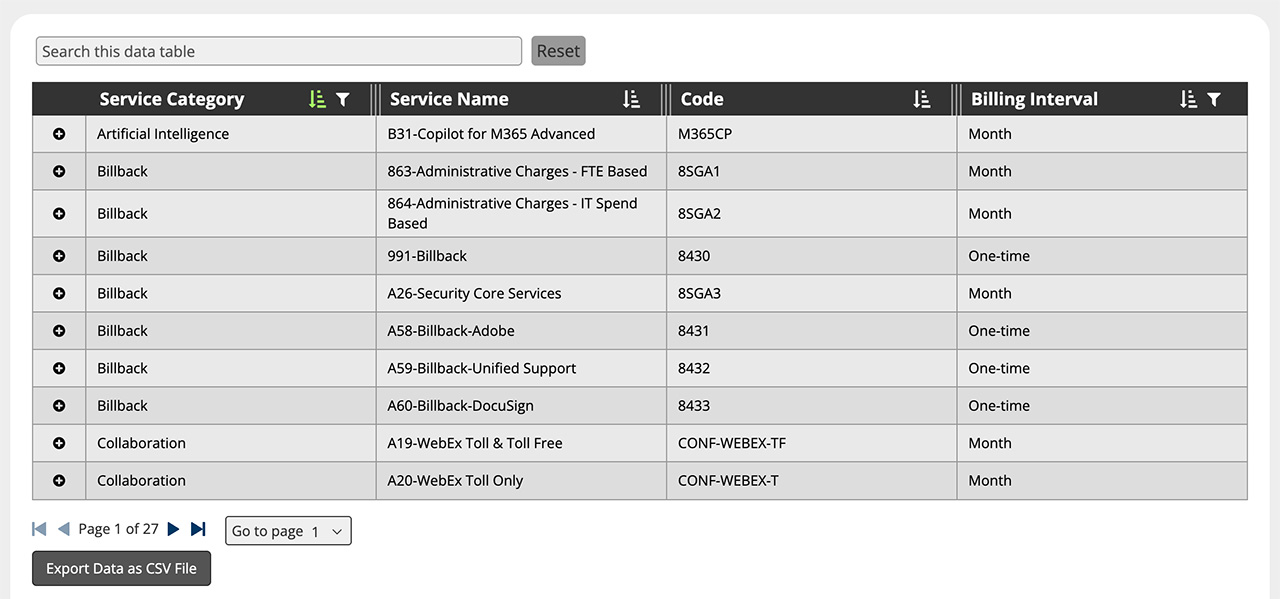

The Data Table is a feature-rich table presentation that allows one to search through the data, filter by column category data, sorting, quick pagination to find the data you're looking for, and the option to export the current data view as a .CSV file.  The data table also has the ability to allow the end user to resize the columns to their liking, and persists while on the page.  It also allows for a toggled hidden set of data, able to present more data sets in a customized manner.

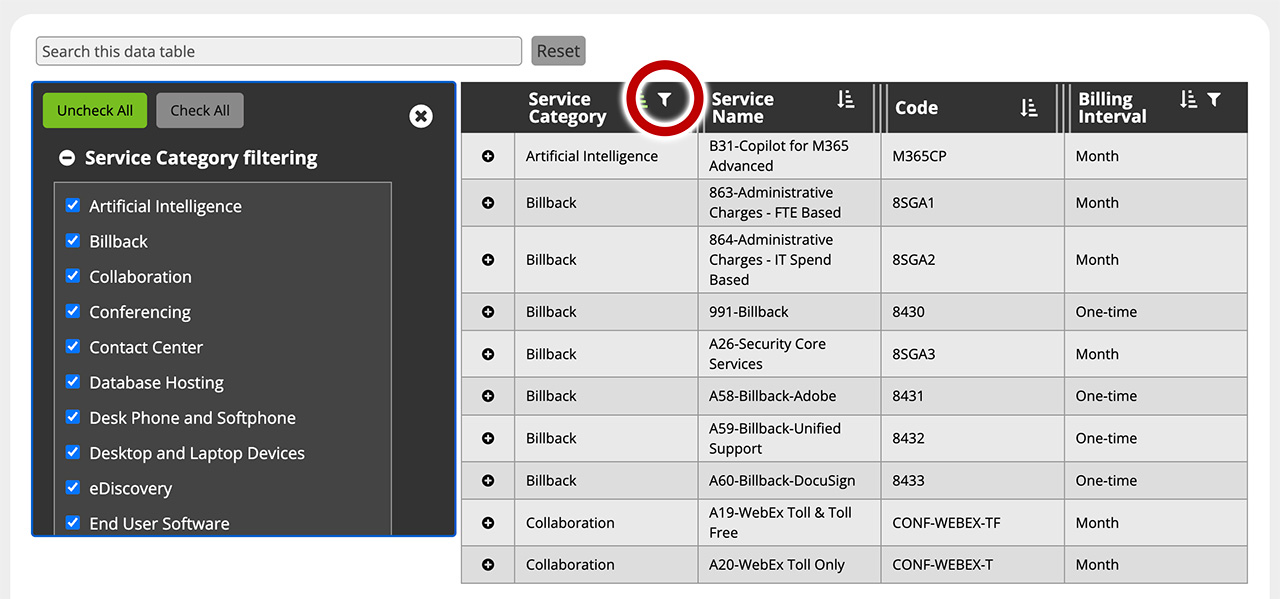

Custom filtering
For columns that have repeating data, such as categories or commonly shared attributes, you can enable filtering on those columns, allowing users to narrow down the data view by category or type.  In the filtering view you have the option to individually click and un-click attributes, as well as check all and uncheck all.  If you have more than one column that is filterable, you can even toggle the display of each filter group and set up custom filters within each filtering group.

Search filtering
You can filter out all data that doesn't match your search criteria — simply begin typing and the table search looks for matches to what you're typing, as you're typing.  The search filtering also searches toggled hidden content.

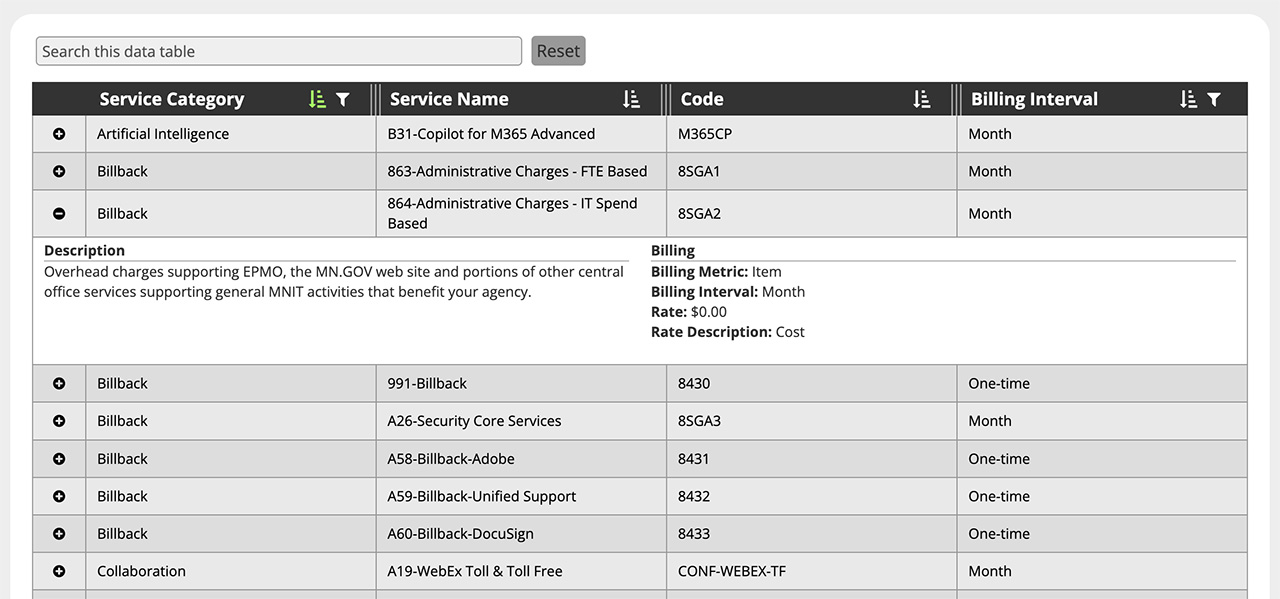

Customizable toggled view of additional data
If your data table has a larger quantity of fields than is practical to display in the default view, you can provide a toggled view of additional data.  With the configuration component, you're able to customize the toggled data with the provided rich text editor.  You can present that additional data as a simple list, as an embedded table, or if you're HTML savvy, you can use HTML to create your layout in the source view (basic Bootstrap column classes supported — example: <div class="col-sm-6"></div>).  To create placeholders for your various data fields, place the column's unique header name (key, node name, etc) in brackets like this:  [Billing Metric].  It is case-sensitive and must match your column header keys in your data source.

The Data Table has some additional notable features — some of which are visible, some under the hood.

• The Data Table is WCAG 2.1 AA compliant and takes advantage of ARIA tagging to provide additional assistance for non-sighted users, providing polite notifications when changes occur in the data table as well as various state updates when navigating through page views or sorting the table.


• The Data Table uses all native table tagging for optimal accessibility and is fully keyboard-navigable, allowing users with assistive technology to fully navigate through the data table with their keyboard or assistive device.


• Columns are resizable both with your mouse and your keyboard and those column sizes are retained while still on the page.  To resize a column with your keyboard, you simply tab into the resizing control in the table header, and adjust with your right and left arrow keys.


• The Data Table also allows the option to provide the end user with the ability to export their current view of the data in CSV format.  A user can filter down their preferred view of the data and then export that view for their use.



We have plans to add additional enhancements in the future, including configurable date sorting, the ability to create your own JSON-based dynamic document lists, and other ways of enhancing the user's experience with the Data Table.

As was mentioned a few times in this documentation, the only accepted source data types are XML, JSON, CSV, and TSV. We've provided some additional information below to help you understand these data types better and how to work with them.  If your Data Table isn't working properly, it's more than likely an issue with your source data or how you set up your configuration.

XML

Extensible Markup Language (XML) is a markup language and file format for storing, transmitting, and reconstructing data.  For the purposes of the Data Table, your data must be valid XML, and your node names uniform across each column of data you wish to display.  Here is a very small sample of XML data, displaying two nodes of data.

<?xml version="1.0" encoding="UTF-8" ?>
<Services>
    <Service>
        <Service_Category>Application</Service_Category>
        <Service_Name>860-SaaS App Dev &amp; Support - Licensing</Service_Name>
        <Code>8SAAS1</Code>
        <Description>License costs for agency administrative staff using the agency's custom SalesForce solution.</Description>
        <Billing_Metric>Item</Billing_Metric>
        <Billing_Interval>One-time</Billing_Interval>
        <Rate>0</Rate>
        <Rate_Description>Cost</Rate_Description>
    </Service>
    <Service>
        <Service_Category>Audio Conferencing</Service_Category>
        <Service_Name>080-Reservationless Toll Free</Service_Name>
        <Code>IC-R8</Code>
        <Description>Charges for phone conference call Service that is available on-demand, and participants call a toll-free number.</Description>
        <Billing_Metric>Minute</Billing_Metric>
        <Billing_Interval>Month</Billing_Interval>
        <Rate>0.0358</Rate>
        <Rate_Description>Fixed</Rate_Description>
    </Service>
</Services>

In this example, "Service_Category" is the node name that represents all of the categories of services in our data.  You can see that under "Service_Category" there are two different categories of services represented:  Application and Audio Conferencing.  In your Data Table configuration, you would use "Service_Category" as the  Header Key for either your visible or hidden toggled columns of content.  It's important to note that these node names must be unique within each repeating group of nodes.  If for example I had two nodes within <Service> named <Service_Category>, this would likely break the Data Table.  Please ensure that each node that you plan on configuring into the Data Table is unique for each block of XML data.

It should be understood that when using an XML data source, it must follow all of the typical rules of XML, such as properly nested tags, matching opening and closing node tags, and other such conventions unique to XML.

JSON

JavaScript Object Notation (JSON) is an open standard file format and data interchange format that uses human-readable text to store and transmit data objects consisting of key-value pairs.  Like XML, it is expected that your JSON data must be valid, have uniform key names across each repeating node of data, and be a unique name within each node.  Here is a sample of JSON data:

[
    {
            "Service Category": "Application",
            "Service Name": "860-SaaS App Dev & Support - Licensing",
            "Code": "8SAAS1",
            "Description": "License costs for agency administrative staff using the agency's custom SalesForce solution.",
            "Billing Metric": "Item",
            "Billing Interval": "One-time",
            "Rate": "0",
            "Rate Description": "Cost"

    },
    {
            "Service Category": "Audio Conferencing",
            "Service Name": "080-Reservationless Toll Free",
            "Code": "IC-R8",
            "Description": "Charges for phone conference call service that is available on-demand, and participants call a toll-free number.",
            "Billing Metric": "Minute",
            "Billing Interval": "Month",
            "Rate": "0.0358",
            "Rate Description": "Fixed"
    }
]

Your JSON data source must follow all the expected rules of JSON (in fact, we advise running your data through a JSON lint service to validate your data's format) and unique to usage in the Data Table, your key names must be unique to prevent the Data Table from choking on your data.  In the above example, you'll note that "Service Category" is unique in each node (there is no other "Service Category" within each node.

Generally speaking we advise you to encapsulate your key-value pairs in quotes ("Service Category": "Audio Conferencing"), but in the case of numbers, it is acceptable to present those values without quotation marks.  However, all keys must be contained within quotation marks.  Any quotation marks occurring within a value must be escaped with a backslash (\).

Example:
"Description": "Your up-time is \"technically\" not 24x7"

To define a Header Key within the Data Table, you would simply type out the matching key name within your data.  Using our example above, any of the following are valid Header Key names:  Service Category, Service Name, Code, Description, Billing Metric, Billing Interval, Rate, Rate Description.

CSV & TSV

Comma-separated values (CSV) and Tab-separated values (TSV) are plain text data formats for storing tabular data where the fields (values) of a record are separated by a comma (CSV) or a tab (TSV) and each record is a line.  For the sake of presenting a CSV or TSV file, your file must also include a header row containing the unique names for each of your columns of data.  Below is a sample CSV file:

Service Category,Service Name,Code,Description,Billing Metric,Billing Interval,Rate,Rate Description
Application,860-SaaS App Dev & Support - Licensing,8SAAS1,License costs for agency administrative staff using the agency's custom SalesForce solution.,Item,One-time,0,Cost
Audio Conferencing,080-Reservationless Toll Free,IC-R8,"Charges for phone conference call service that is available on-demand, and participants call a toll-free number.",Minute,Month,0.0358,Fixed

There is something important that you should note about working with CSV data.  Because it is comma-separated, if your data has commas within a cell or column of data, that column or cell must be encapsulated in quotations.  If you look at the example above, the first row of data (beginning with "Application") has no quotation marks encapsulating any of the fields; however the second line of data (beginning with "Audio Conferencing" has a column that is contained within quotations:  "Charges for phone conference call service that is available on-demand, and participants call a toll-free number."

Remember that Header Keys within the Data Table are case-sensitive.  Using the example above, to include Service Category data into a visible column of data, the header key name must match "Service Category".  Typing "service category" would result in a failure to display that data in that column.

The table below shows each of the accepted content types for both visible and hidden/toggle columns of data, including the name, expected input format, and how it will output.

* We have plans of providing you date/time formatting options in the future, but for now will output as is.  While technically you can input your dates like this:  "February 7, 2026", we encourage you to use the aforementioned machine-readable format (2026-02-07) so that we can convert it uniformly to the format that you desire.
